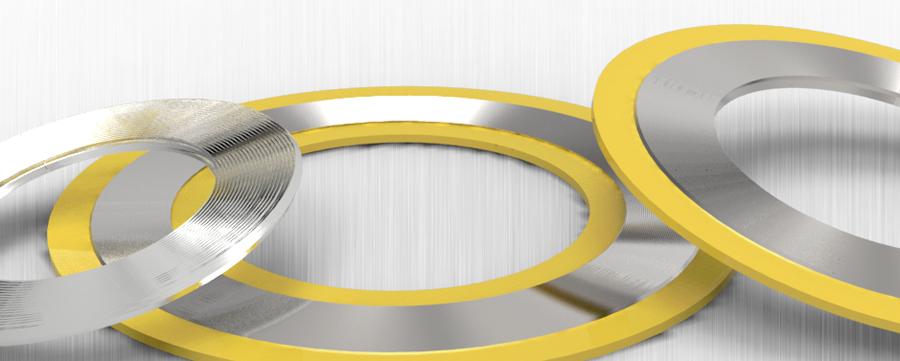

These are in wide use among equipment manufacturers who are employing metal-to-metal joints in an increasing list of applications. They also may be used for standard tongue and groove and male-female joints at all pressures as well as for valve bonnets, ammonia fittings and other closures which demand a highly resilient gasket. They find particular application where space and weight are critical factors in overall design problems, i.e., missile and aircraft units. Standard gasket thickness is 3/16" nominal; 1/8" and 1/4" thicknesses are available for special uses.

Built for long service life on standard piping and many other closures. Withstand wide fluctuations in temperature and pressure. Usually supplied with solid metal centering and compression ring surrounding outer edge only. Gasket thickness is 3/16" nominal. Solid compression limiting rings are nominal 1/8" thick.

Available with solid metal centering and compression rings surrounding inner as well as outer edge. The inner ring fills space between flanges and acts to reduce erosion of flange facings and minimizes turbulence. Gasket thickness is 3/16" nominal. Solid compression limiting rings are nominal 1/8" thick. They are designed to prevent damage from careless insertion or over-bolting.
